Balluff BAW001Z Endüktif Mesafe Sensörü
Size bir yanıt hakkında bilgi verebilmemiz için lütfen oturum açın

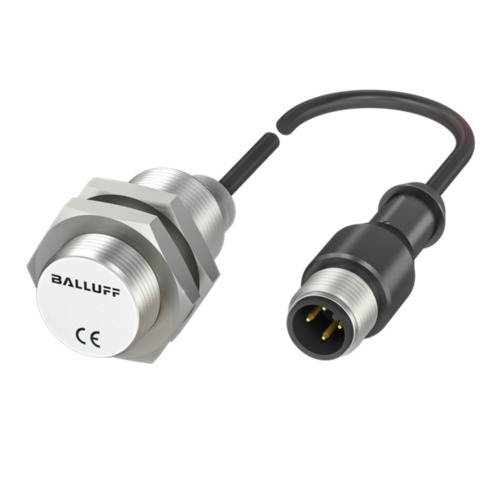

Balluff BAW001Z Inductive Distance Sensor
⦁Dimension: Ø 18 x 36 mm
⦁Style: M18x1
⦁Installation: for flush mounting
⦁Range: 1 - 5 mm
⦁Output characteristic: falling on approach
⦁Limit frequency –3 dB: 500 Hz
⦁Repeat accuracy per BWN: ±8 µm
⦁Non-linearity max.: ±120 µm
⦁Housing material: Brass, nickel-plated
⦁Material sensing surface: PBT
⦁Connection: Cable with connector, M12x1-Male, 3-pin, 0.20 m, PUR
⦁Operating voltage Ub: 15 - 30 VDC
⦁Ambient temperature: -10 - 70 °C
⦁IP rating per IEC 60529: IP67
Marka:
Balluff
Kategorisi:
Endüktif Sensör
Model / Kod:
BAW001Z
